Tcat Switch
Your present position：
Home
>>
PRUDUCTS
>>
Tcat Switch

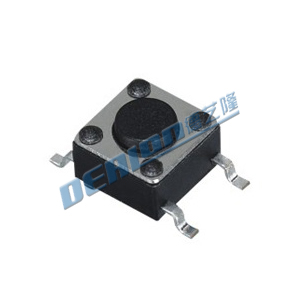

TD-1138SR
Size:6.0mm*6.0mm
SPECIFICATION
Contact Rating
DC 12V 50mA
Contact Resistance
500mΩ max.
Insulation Resistance
100MΩ min. 500V DC
Operating Force
180gf,250gf
Travel
0.25±0.1mm
Operating Life
1,000,000 Cycles
Operating Temp
－25℃＋80℃
Storage Temp
－25℃＋85℃
Drawings
